Forklift Tynes

Tynes to suit all models of forklift

HS Sales sell forklift tynes for all makes and models of forklift. Our tynes come in a range of capacities and sizes, and can be custom made to suit your requirements. Tynes are also known as fork arms. Class II Tynes, Class III Tynes, Class IV Tynes available

Before ordering tynes, you will need to know which forks you require. The diagram above will assist you with your tyne choice.

Step 1: Carriage Size:

Firstly you will need to determine the size of your carriage to work out which class of tynes you require. Tynes are classified as Class II, Class III or Class IV depending on the size of the forklift carriage to which they attach. This is measurement “A” on the diagram above.

Step 2: Tyne dimensions

  • length: measure from the front of the fork all the way to the end of the tip.
  • width: measure the fork from one side to the other
  • thickness: take this measurement near the back of the fork as the front may be worn thin.

Step 3: Capacity of the Forklift

Look on or near the dashboard of the forklift and find the data tag. This will tell you the forklift capacity. Each set of forks has a rated capacity. This is the maximum lifting capacity for a set of 2 forks.

Scroll down to view a list of the most common tyne sizes. We keep most sizes in stock. Please contact us first to check availability. If the size you require is not there, please contact us as we also have other sizes available.

ITA Fork Tynes / Fork Arms / Load Arms for Forklift

These are the most common type of fork tyne. (also referred to as FEM fork tynes)
Capacity ranges from 1,200kg to 8,000kgs
Lengths from 1070mm to 2440mm.

Please see our sizing table below. Other sizes and types also available.

Fork Tyne Size Chart

HS Part No Cascade Part Number Capacity/Pair (kg) @ 600mm Load Centre Mounting Class (A) Weight (kg) Horizontal Centre of Gravity Fork Width mm (B) Fork Thickness mm (C) Fork Length mm (D)
Fork Tynes
CFT2-1000351067 B2A42SD 1700 II 80 318 100 35 1067
CFT2-1000351219 B2A48S0 1700 II 90 384 100 35 1219
CFT2-1000401067 B2B42SD 2500 II 90 318 100 40 1067
CFT2-1000401219 B2B48SD 2500 II 98 368 100 40 1219
CFT2-1000401372 B2B54SD 2500 II 106 434 100 40 1372
CFT2-1000401524 B2B60SD 2500 II 116 503 100 40 1524
CFT2-1220401067 B2C42SD 2500 II 108 305 122 40 1067
CFT2-1220401219 B2C48SD 2500 II 120 371 122 40 1219
CFT2-1220401372 B2C54SD 2500 II 130 439 122 40 1372
CFT2-1220401524 B2C60SD 2500 II 140 508 122 40 1524
CFT2-1220401829 B2C72SD 2500 II 170 575 122 40 1829
CFT2-1220451829 B2F72SD 2500 II 192 648 122 45 1829
CFT2-1220452134 B2F84SD 2500 II 220 780 122 45 2134
CFT2-1220452438 B2F96SD 2500 II 248 926 122 45 2438
CFT3-1220451067 B3F42SD 3500 III 128 274 122 45 1067
CFT3-1220451219 B3F48SD 3500 III 140 338 122 45 1219
CFT3-1220451372 B3F54SD 3500 III 154 401 122 45 1372
CFT3-1220451524 B3F60SD 3500 III 168 467 122 45 1524
CFT3-1220451829 B3F72SD 3500 III 204 605 122 45 1829
CFT3-1220501067 B3M42SD 4300 III 138 264 122 50 1067
CFT3-1220501219 B3M48SD 4300 III 154 325 122 50 1219
CFT3-1220501372 B3M54SD 4300 III 166 389 122 50 1372
CFT3-1220501524 B3M60SD 4300 III 182 450 122 50 1524
CFT3-1220501829 B3M72SD 4300 III 214 589 122 50 1829
CFT3-1220502134 B3M84SD 4300 III 248 690 122 50 2134
CFT3-1220502438 B3M96SD 4300 III 272 836 122 50 2438
CFT3-1500501067 B3N42SD 4500 III 176 267 150 50 1067
CFT3-1500501219 B3N48SD 4500 III 192 325 150 50 1219
CFT3-1500501372 B3N54SD 4500 III 210 389 150 50 1372
CFT3-1500501524 B3N60SD 4500 III 228 455 150 50 1524
CFT3-1500501829 B3N72SD 4500 III 264 589 150 50 1829
CFT3-1500502134 B3N64SD 4500 III 300 757 150 50 2134
CFT3-1500502438 B3N96SD 4500 III 346 835 150 50 2438
CFT4-1500501067 B4N42SD 5500 IV 196 209 150 50 1067
CFT4-1500501219 B4N48SD 5500 IV 214 264 150 50 1219
CFT4-1500501372 B4N54SD 5500 IV 232 322 150 50 1372
CFT4-1500601219 B4R48SD 7500 IV 258 279 150 60 1219
CFT4-1500601372 B4R54SD 7500 IV 280 337 150 60 1372
CFT4-1500601524 B4R60SD 7500 IV 302 398 150 60 1524
CFT4-1500601829 B4R72SD 7500 IV 344 525 150 60 1829
CFT4-1500602134 B4R84SD 7500 IV 386 710 150 60 2134
CFT4-1500602438 B4R96SD 7500 IV 432 895 150 60 2438
CFT4-1500651219 B4T48SD 8000 IV 266 279 150 65 1219
CFT4-1500651372 B4T54SD 8000 IV 290 338 150 65 1372
CFT4-1500651524 B4T60SD 8000 IV 312 399 150 65 1524
CFT4-1500651829 B4T72SD 8000 IV 363 526 150 65 1829
CFT4-1500652134 B4T84SD 8000 IV 409 660 150 65 2134
CFT4-1500652437 B4T96SD 8000 IV 450 797 150 65 2437

Eye-Type Fork Tynes/ Fork Arms / Load Arms for Forklift

  • Eye type tynes and accessories to suit forklifts and loaders that are fitted with pin type carriages.
  • Capacity ranges from 1,000kgs to 50,000kg
  • Lengths from 1070mm to 3600mm.

Blank Forks



Catalogue Order Number Capacity/Pair (kg) @

Load Centre (mm)

 Weight (kg) Fork Width (B) Fork Thickness (A) Fork Length (C) Taper Length (D) Shank Height (E)
ZB1070A 2500 @ 600 92 100 40 1070 560 660
ZZ1070SB1 3150 @ 600 104 100 45 1070 660 660
ZF1070B 3850 @ 600 140 122 45 1070 660 840
ZF1220B 3850 @ 600 154 122 45 1220 660 840
ZM1070B 4750 @ 600 156 122 50 1070 660 840
ZM1220SB1 4750 @ 600 170 122 50 1220 660 840
ZM1520B 4750 @ 600 200 122 50 1520 660 840
ZM1830B 4750 @ 600 224 122 50 1830 660 840
ZN1070C 5800 @ 600 190 150 50 1070 660 914
ZN1220C 5800 @ 600 208 150 50 1220 660 914
ZN1370C 5800 @ 600 224 150 50 1370 660 914
ZN1520C 5800 @ 600 242 150 50 1520 660 914
ZN1830C 5800 @ 600 280 150 50 1830 660 914
ZN2130C 5800 @ 600 310 150 50 2130 660 914
ZT1220D 9800 @ 600 272 150 65 1220 760 1016
ZT1520D 9800 @ 600 320 150 65 1520 760 1016
ZT1830D 9800 @ 600 366 150 65 1830 760 1016
ZT2130D 9800 @ 600 412 150 65 2130 760 1016
ZT2440D 9800 @ 600 460 150 65 2440 760 1016
ZU1520E 13700 @ 600 536 180 70 1520 1070 1500
ZU1830E 13700 @ 600 598 180 70 1830 1070 1500
ZU2440E 13700 @ 600 720 180 70 2440 1070 1500
ZV1830E 15200 @ 600 664 200 70 1830 1070 1650
ZV2130E 15200 @ 600 730 200 70 2130 1070 1650
ZV2440E 15200 @ 600 798 200 70 2440 1070 1650
ZW1520E 17500 @ 600 638 200 75 1520 1070 1650
ZW1830E 17500 @ 600 712 200 75 1830 1070 1650
ZW2130W 17500 @ 600 854 200 75 2130 1070 1650
ZW2440E 17500 @ 600 918 200 75 2440 1070 1650
ZX2440E 25200 @ 600 1026 200 90 2440 1070 1650
7003019 15500 @ 600 1070 200 100 2440 1070 1650
7003010 19400 @ 600 1424 250 100 2440 1070 1800
ZZ3200KG 32000 @ 600 1970 300 110 2440 1800 1900

Special Mount Fork Tynes/ Fork Arms / Load Arms for Forklift

Handling Systems Australia can supply specialist mount tynes to suit any application.
Specialist mounts include –

  • Square hook carriage mount.

  • Direct bolt mount.

  • Rollerised mount.

  • Quick release mount.

  • Inverted mounted tynes.

  • Tyne blanks – no mounts fitted.

  • Tyne flats – flat blade with no vertical back section.

Hay Tynes / Hay Spike

Spring steel hay tynes and conus assemblies available.

Replaces standard tynes.

We also sell a range of off-the-shelf and custom made hay bale frames. Click here to learn more.

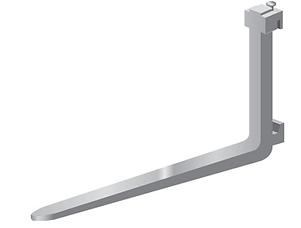

Roller tynes and brick tynes are also available.

Looking for Fork Extension Slippers? Click here
